S.E.A. measurement and analysis systems for the mobile communications technologies 2G/3G/4G/5G/NB-IoT/LTE-M
S.E.A. develops, produces and provides measurement and analysis systems for the different mobile radio technologies. For example, radio cell parameters and the reception quality of the various mobile networks, technologies and providers can be easily recorded. The systems are mobile and can very efficiently and quickly survey entire streets, cities, counties or even countries within the scope of so-called drive or walk tests, as well as evaluate the recorded data.
  • Determination of the mobile radio situation at a specific location or for an entire area
  • Acquisition of radio cell parameters and reception quality
  • Comparison of providers and technologies
  • Autonomous acquisition with many sensors simultaneously

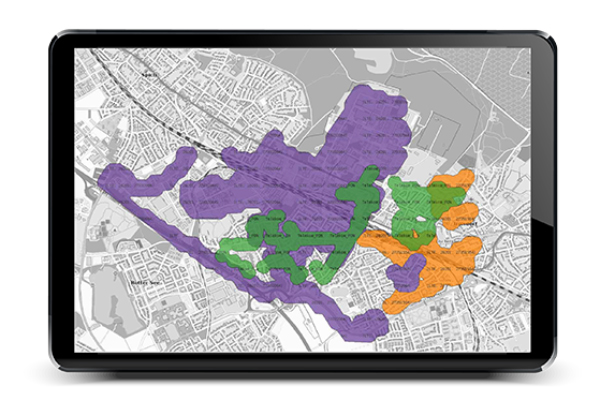

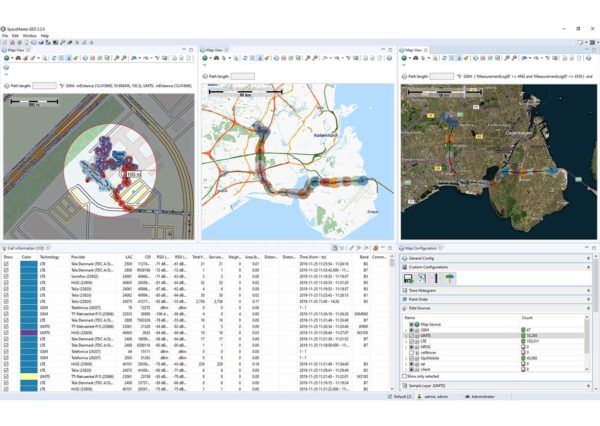

Screenshot of the SpaceMaster software platform with extensive evaluation and analysis functions, visualized in map and report presentation
SpaceMaster software platform with extensive evaluation and analysis functions

SpaceMaster® software platform

with numerous evaluation & analysis functions

For the analysis and evaluation of radio cell data, the SpaceMaster software platform is available. As a client-server system, large volumes of data can be managed and analyzed. The main focus here is on the map visualization of acquired radio cell data as well as extensive filter and analysis options that specialize in the evaluation of mobile radio data. As an information system, the platform can also be used to display cell parameters from different network operators. Even different technologies such as 5G, WLAN and NB-IoT can be displayed and compared simultaneously.

  • Determination of mobile radio coverage and reception situation
  • Combined display of measurement data with geo-coordinates on maps
  • Provider and cell statistics for comparative measurements
  • Determination of cell spreading and cell shape
  • Various display filters, e.g. according to technology (2G/3G/4G/5G/NB-IoT, WLAN) or RSSI/RSRQ etc.
  • Comparison of radio cell characteristics over time
Detail of a SpaceMaster Software map
Sample software view with mobile cell information

Benefits

Easy operation

You do not need to be a mobile communications specialist to operate the devices. The devices are simply configured according to provider and technology and then operate completely automatically.

Realistic network registration

Due to many simultaneously active sensors and the use of real SIM cards, the devices also realistically register with the respective mobile network.

Fast and efficient

In a short time and with little manpower, an overview of the mobile network coverage is obtained – without lengthy measurements using scanners.

Automated data backup

All our devices are equipped with dedicated LTE modems for the automated upload of measurement data. This way, no one has to worry about backing up the data and transferring it.

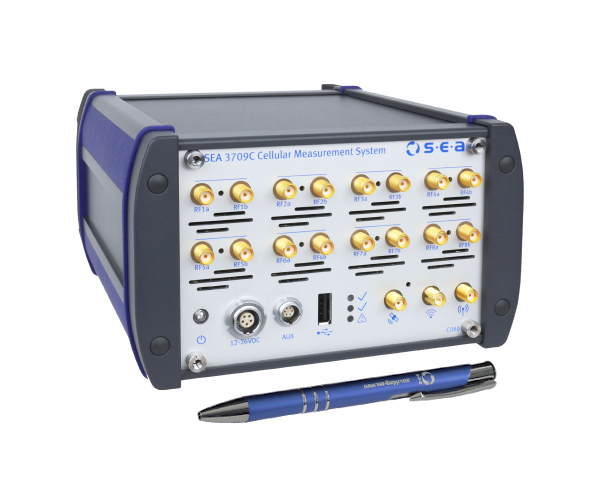

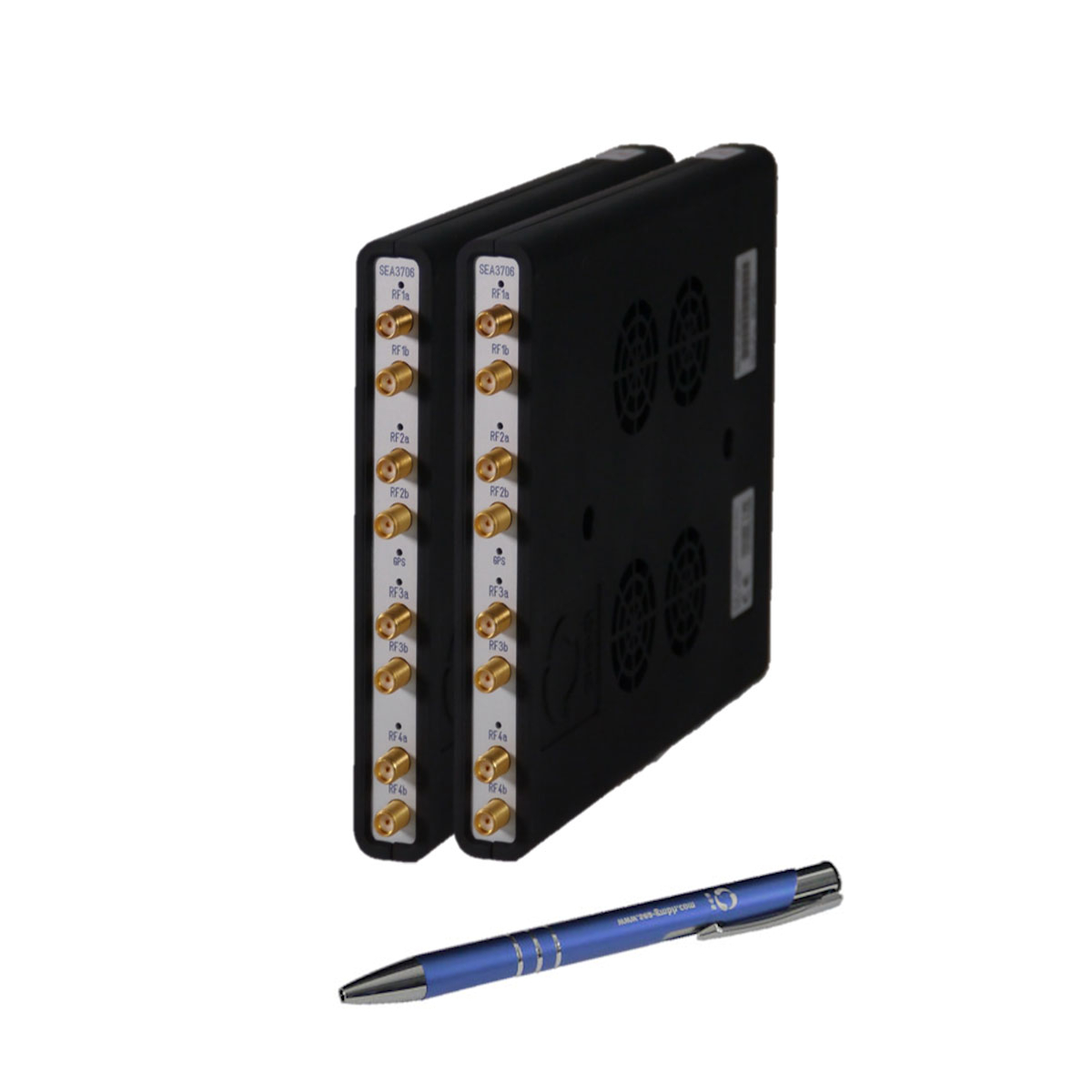

Device variants and designs

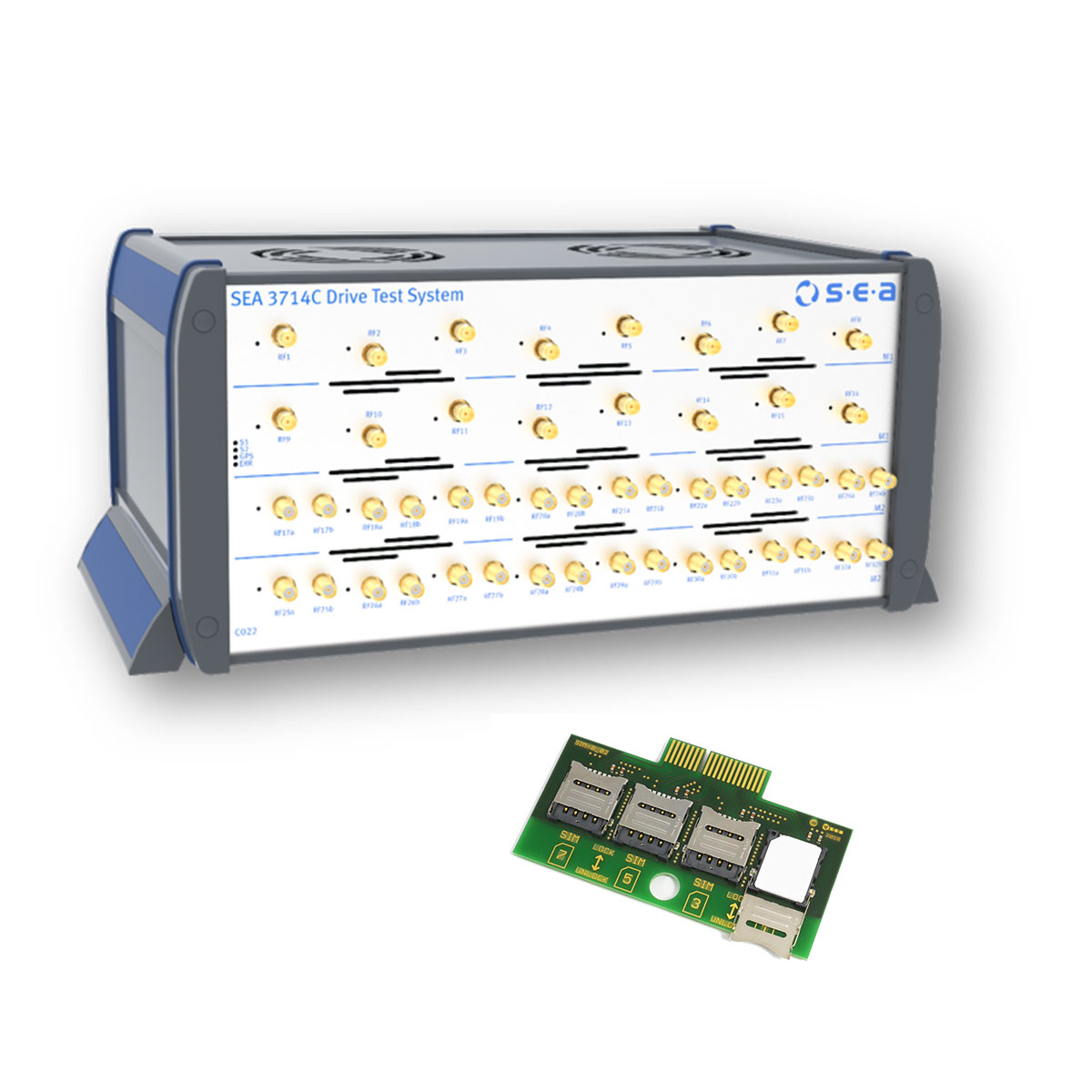

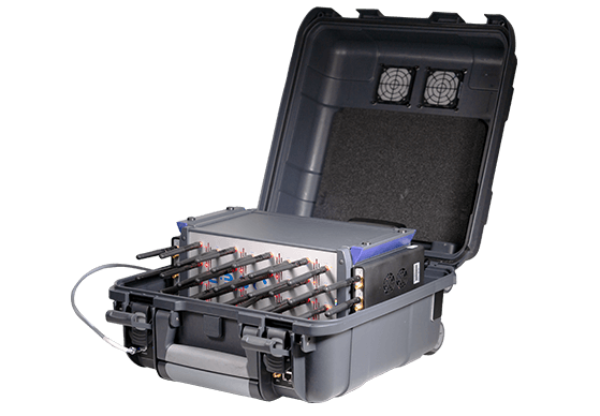

SEA 3714C Drive Test System

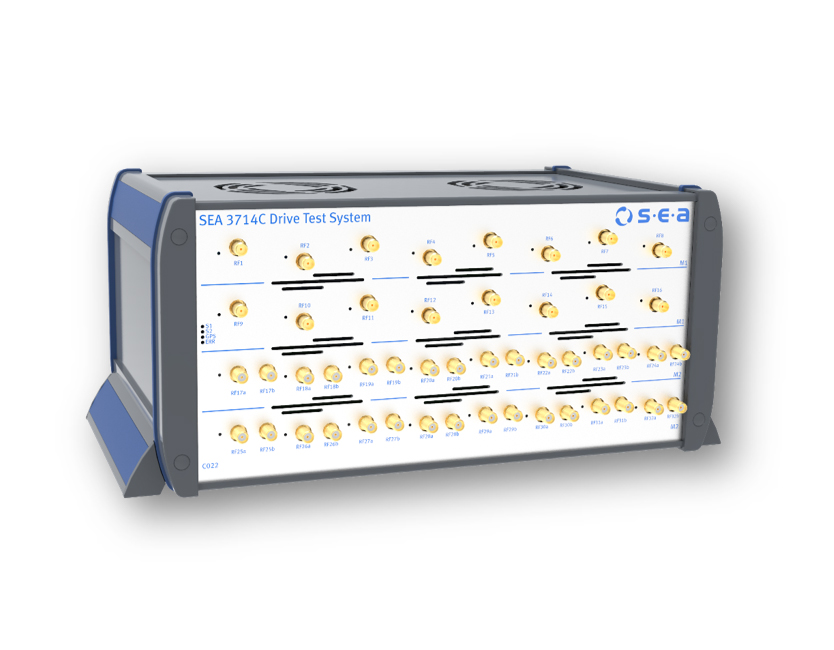

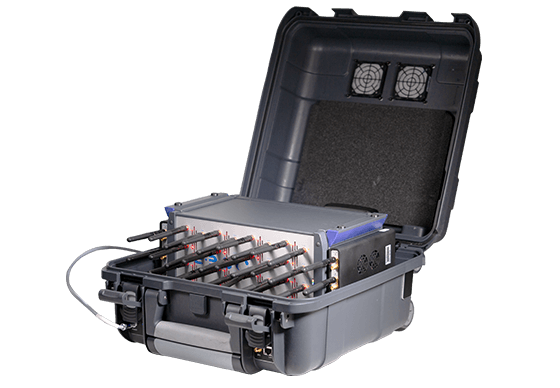

The SEA 3714C is a modular device with 32 channels, which is available in different hardware configurations. The system shown can acquire and record all network technologies from 2G (GSM), 3G (UMTS), 4G (LTE) and 5G NR in Stand Alone (SA) or Non-Stand Alone (NSA) mode. In this process, not only cell information but also neighbor cell information and quality parameters are captured and recorded, e.g. LAC, ECID, CID, TAC, RSSI etc.

Brief overview of technologies and frequencies

  • 2G: 900 MHz / 1800 MHz
  • 3G: B1, B3, B5, B6, B8, B19
  • 4G – FDD: B1, B3, B5, B7, B8, B18, B19, B20, B28, B32
  • 4G – TDD: B38, B40, B41, B42, B43
  • 5G – SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79

Operation by battery or charging device possible

SEA 3714C Drive Test System

Country variants

Many of our devices are available as variants for further countries and radio standards.

Contact us

World map with application areas
World map with application areas

Accessories

  • Ladegerät mit Autoadapter eines unserer Mobilfunkmessgeräte

    Charging device

    Charging device and car adapter for operation in vehicles (12 V vehicle adapter)

  • Magnetantenne

    GPS antenna

    Active magnetic mount antenna for direct connection to mobile radio measurement devices (SMA/FAKRA connector)

  • Weitbereichsnetzteil eines unserer Mobilfunkmessgeräte

    Power supply

    Wide range power supply for stationary operation with charging adapter (110–230V/12V 60VA)

  • Hochleistungsakku eines unserer Mobilfunkmessgeräte

    High performance battery

    Lithium-ion battery for mobile operation of the devices

Streaming Client operating software

The devices operate automatically. It is often helpful to display the currently available mobile networks and their parameters. For this, a software for configuration and display is available. An additional map plugin displays the current position, the so far recorded driving route and the so far recorded data on a map. A pre-filtering can be done to check, e.g., the completeness of the acquisition. The data is displayed on offline maps. Maps for many countries are freely available.

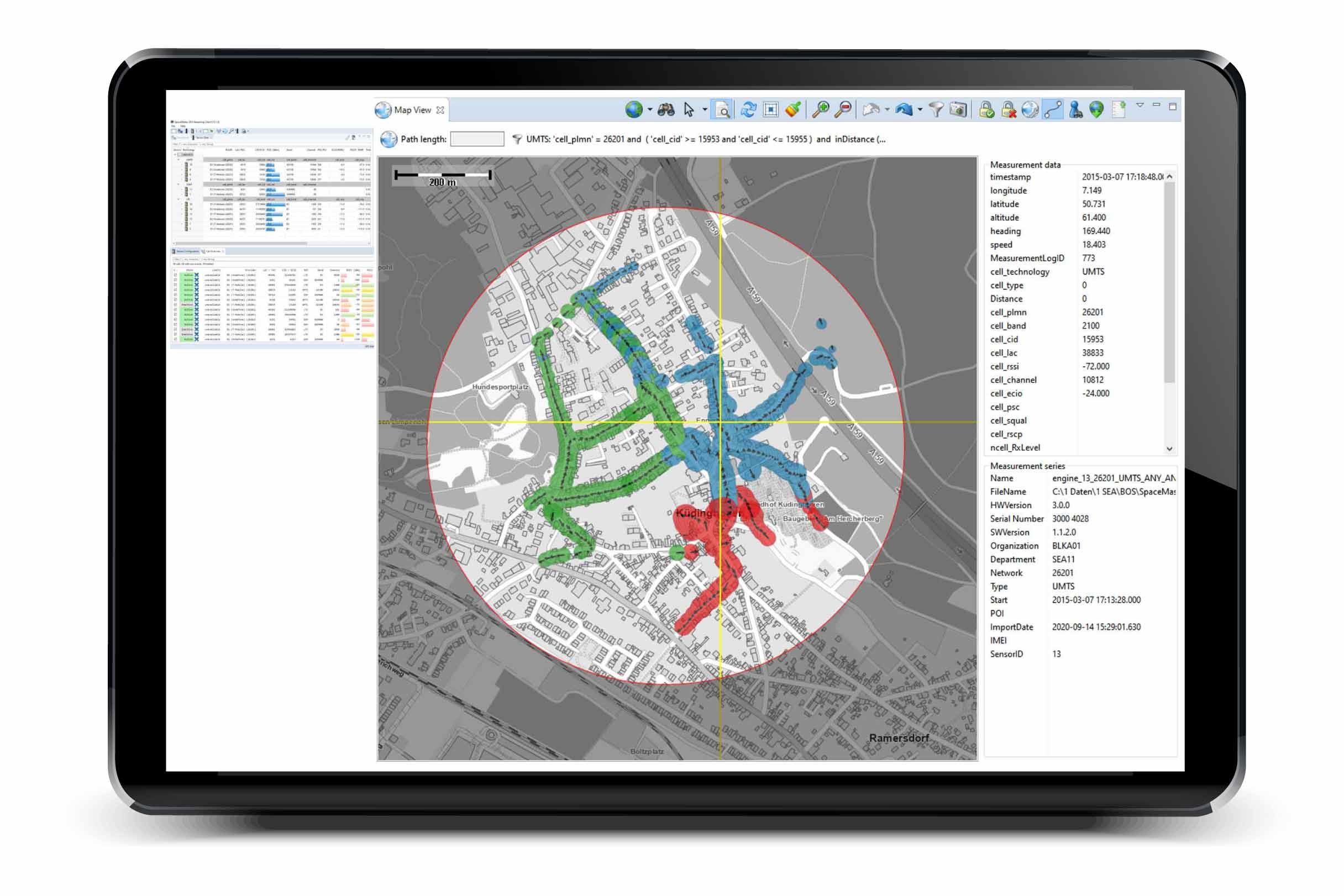

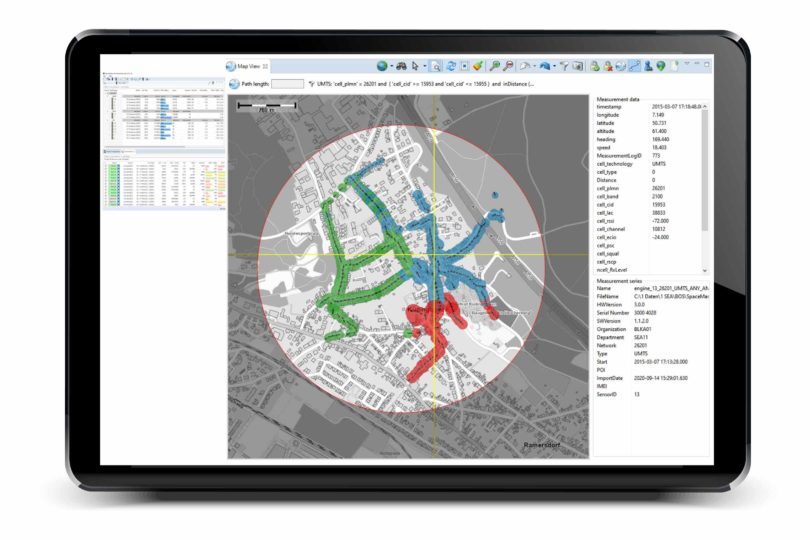

View of the streaming client software user interface with map and statistics plugin
View of the streaming client software user interface with map and statistics plugin

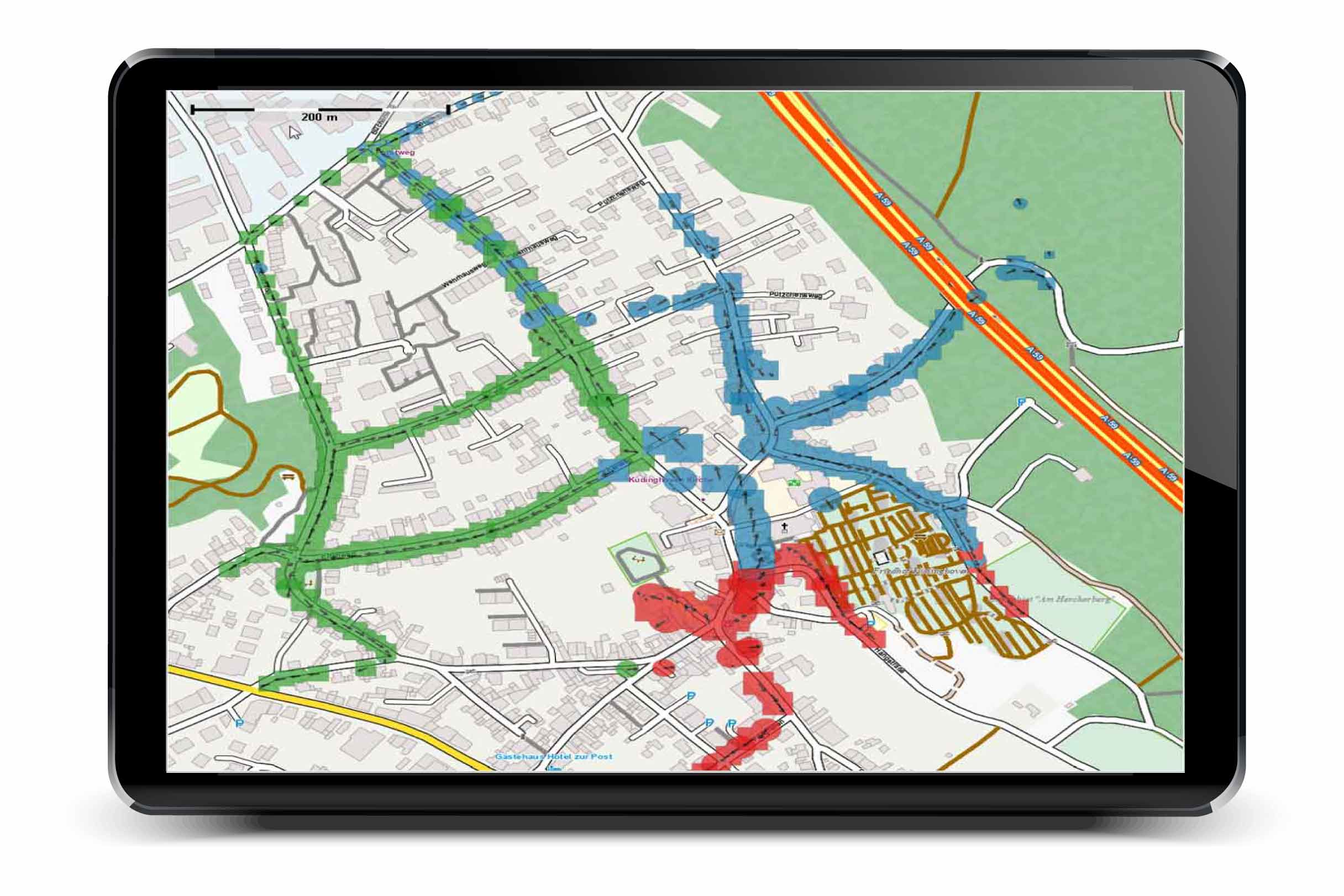

Example view of the mobile radio cells in three radiation directions with overlapping areas
Example view of the mobile radio cells in three radiation directions with overlapping areas

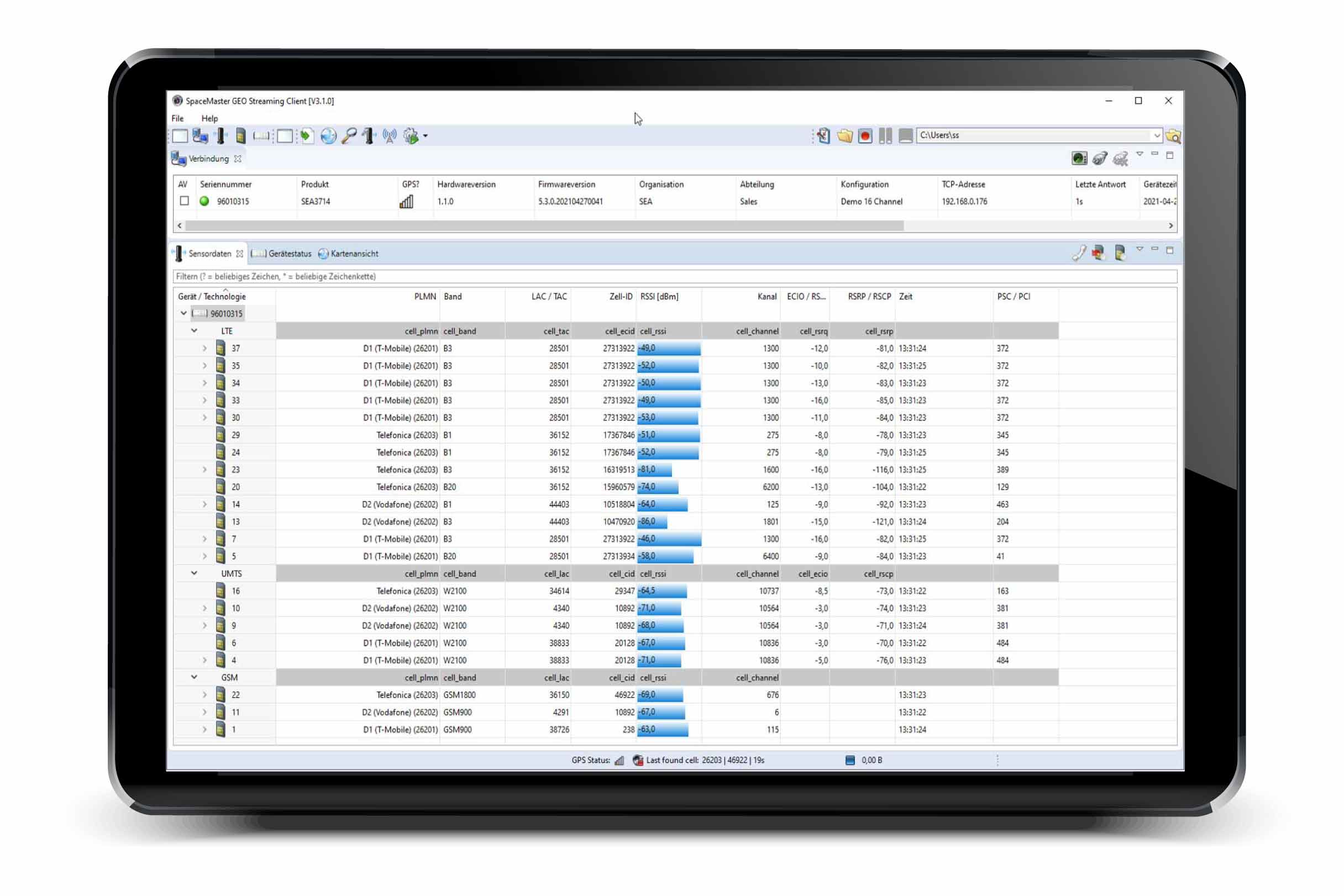

Example view of currently registered mobile networks
Example view of currently registered mobile networks

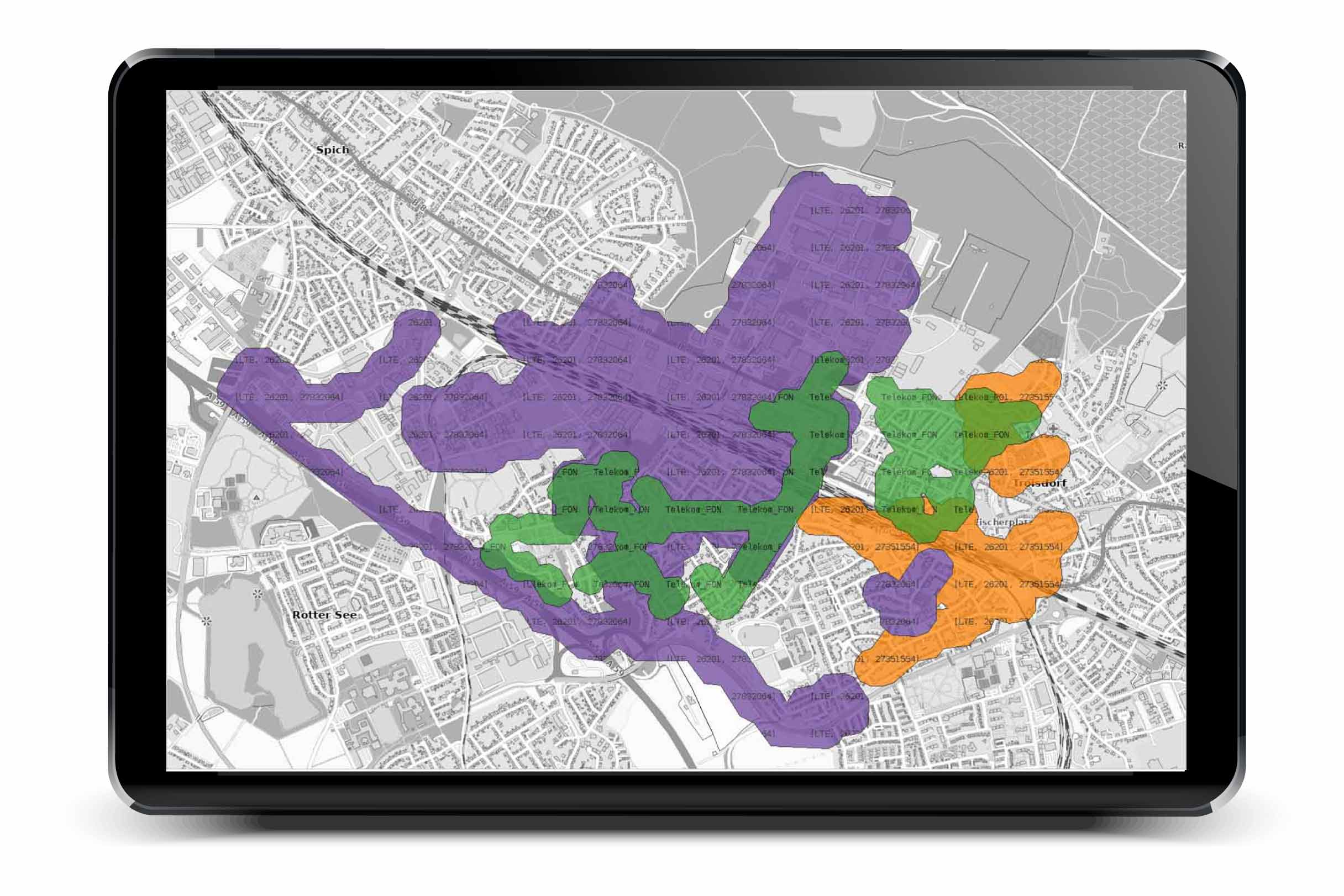

Combined display of mobil radio and WLAN hotspots
Combined display of mobil radio and WLAN hotspots
View of the current driving position on a map during a test drive
View of the current driving position on a map during a test drive
