V2X Monitoring and Logging Tools

Powerful V2X tools for development and in-field monitoring

Contact us

Most capable V2X monitoring

After looking at V2X sniffers during the OmniAir Plugfest, the S.E.A.-NI sniffer is the most capable including the advanced protocol decoding.

  • Technical Lead,
  • advanced V2X development team

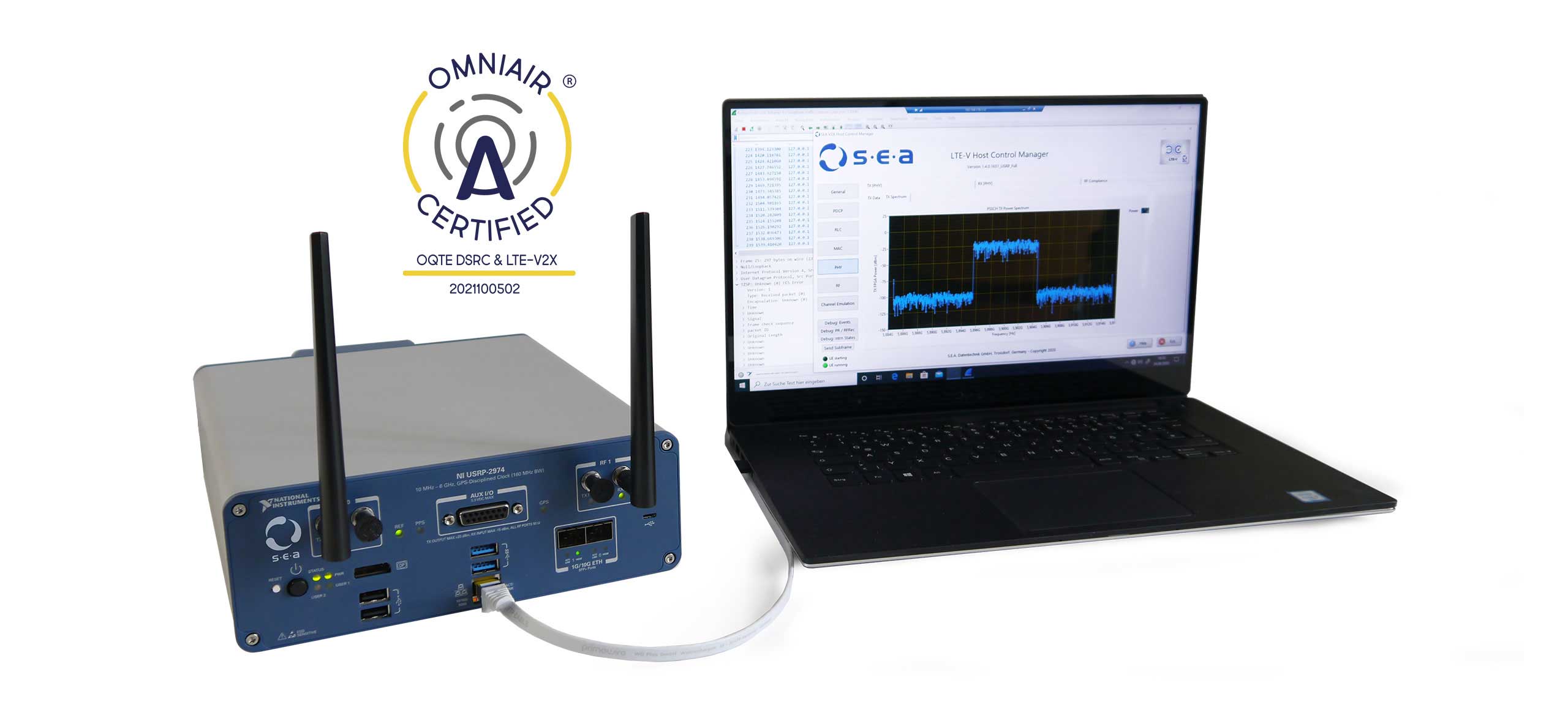

  • SEA3610 V2X Sniffer with external laptop and tablet
    SEA3610 V2X Sniffer with external laptop and tablet

    Mobile SDR-based V2X Sniffer

    High performance mobile V2X monitoring and logging devices

    Grab all required data in every detail for V2X development and quality assurance tasks.

    Monitoring direct V2X communication is required step secure correct and a robust V2X implementation in vehicles and to prove the correct behavior in real world uses cases.
    Test, implementation and maintenance of V2X infrastructure is critical for the correct function of V2X, especially for safety of all traffic participants especially in the upcoming era of autonomous operating vehicles.
    The S.E.A. V2X Sniffer is based on NI Software Defined Radio (SDR) technology.

    Advantages

    First Omniair Certificatied Sniffer with combined C-V2X & DSRC support.

    Easy to use graphical user interface for simple in-field operation.

    Unique features for monitoring on RF-signal and V2X message level.

    Future safe, powerful and flexible by application of Software Defined Radio (SDR) Technology.

    Support of Wireshark for message analysis including extended RF-information (SCI-1) for each message.

    Concurrent monitoring and logging operation for 802.11p and LTE-V, 5G (in work) acquisition in field or in the lab.

    SEA 3610 V2X Sniffer

    A compact PC-based turn-key system containing

    Integrated PC (Intel i7) with SSD

    Integrated SDR for the RF-signal acquisition up to 6 GHz (non-cali brated) and processing

    GNSS receiver (1 Hz) for time sync. Optionally a 10 Hz USB-GNSS-receiver for position updates can be provided by the customer

    Windows operating system

    The Sniffer software is focused on simple application and co-operation with standard network tools such as Wireshark for analysis.

    Is operated locally (with a connected keyboard/mouse & monitor) or from a remote PC connected by network with software such as Remote Desktop.

    Can connect to a Wireshark installed by the user locally or on a remote PC by network connection.

    A Wireshark extension (S.E.A. lua-scripts) for the decoding of SCI-1 data is available.

    Stores and recalls customer communication settings for quick and safe routine operation (typical settings are provided).

    User Interface Example for RF Information and Protocol

    Screenshots of User interface example for RF information and protocol and Laptop
    User interface example for RF information and protocol

    Typical Application Fields

    The measurement and test of RF-quality is required by the different stakeholders of V2X-devices throughout the product life cycle. Typical applications for the Sniffer are:

    Infrastructure provider

    Check out the availability and correct function of your V2X infrastructure (RSUs) and services during installation and periodically for maintenance. We can support data handling and processing with our SpaceMaster software

    ECU/RSU suppliers

    Support development and confirm the correct operation and interoperability of your electronics device in the lab and in the field.
    Optionally log V2X communication data for in-lab replay with the V2X functional test systems

    Automotive OEMs

    Check out the behavior of your vehicleÔÇÖs V2X hardware and application software by drive testing and monitoring in real-world situations.

    Test Labs

    Monitor V2X RF-communication and protocol tests with the S.E.A. Sniffer without interfering with the test setup.
    Gather debug information.

    Flexibility

    The platform oriented, modular hardware and software architecture of the S.E.A. approach allows to optionally extend the application area of the V2X Sniffer. Alternative uses:

    This open approach ensures a well-defined system setup, limited integration costs, and future safe investments.
